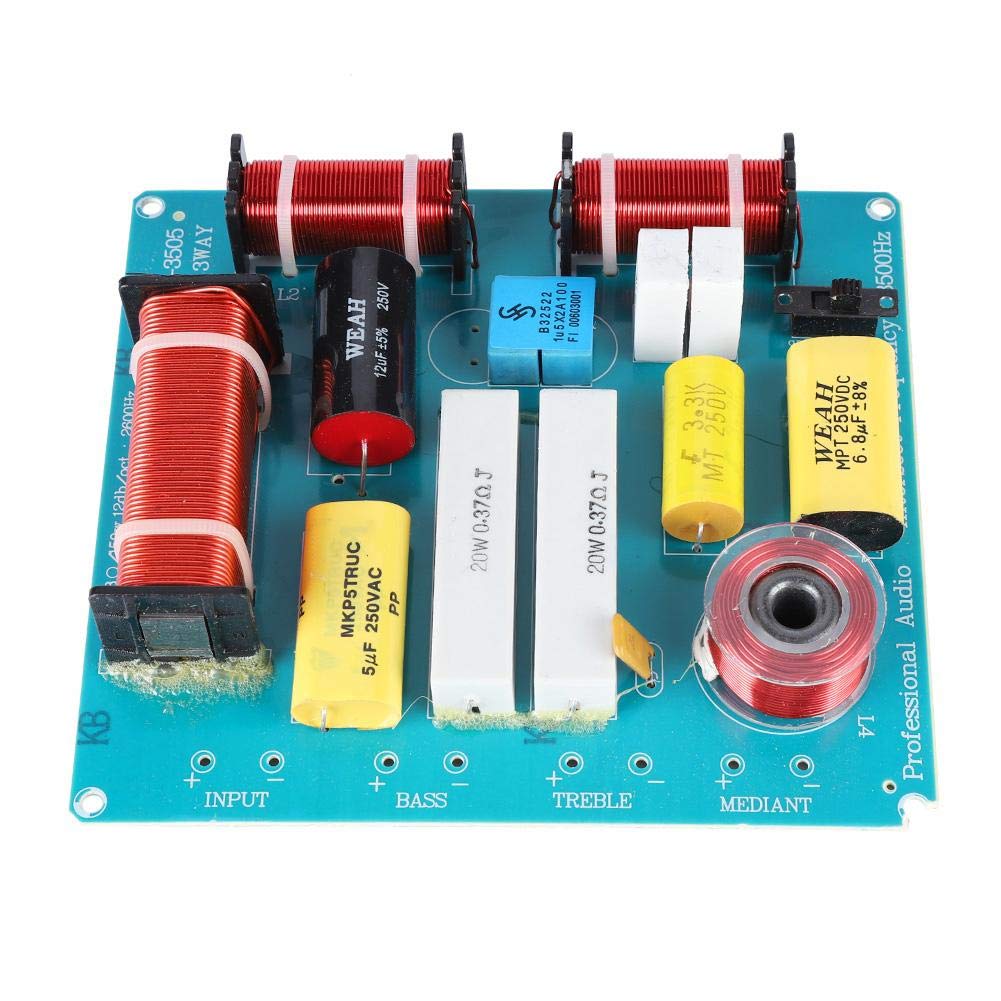

300W 3-Way Frequency Divider Crossover Audio Board - High Power DIY Speaker Crossover for KTV, Stage, Home Theater & Professional Audio Systems

The function of the frequency divider is to separate the mixed analog audio signals into high-pitched, mid-range and low-pitched parts, and then respectively send them to the corresponding high, medium and low woofer units for playing, thereby achieving the purpose of improving the sound quality.Features:1. This is a tweeter+mediant+bass three-way KTV, stage professional speaker crossover and DIY upgrade tool which is to improve audio quality.2. High-quality materials: high temperature resistant wire, wire wound ceramic resistor and imported metal film.3. High-quality capacitors: low loss and high quality, no longer have the problem of electrolytic capacitors.4. Ensuring large load capacity, long-term durability and very good sound quality.5. Over-current protection design, simple and beautiful lines, reasonable component layout.6. Small switch can adjust the treble (normally 3db can be added).Specification:Material: ABSColor: greenPower: about 300WImpedance: 4-8 EuroConnectable speakers: <=12 inchs recommendedInstall diagonal hole position: 19cmAdjacent angles: 14.3cm and 12.7cmSize: 150 * 135mm / 5.9 * 5.3inWeight: approx. 372gPackage List:1 * Frequency Divider
